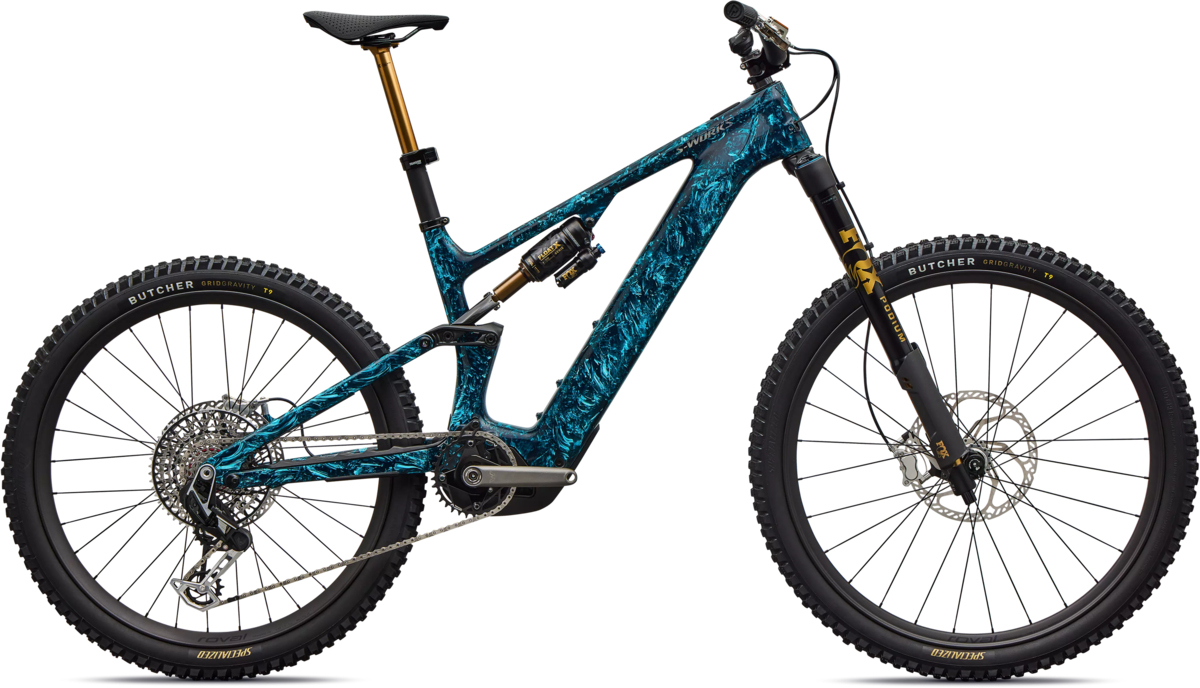

Specialized S-Works Turbo Levo 4 LTD
$20,000.00
Details
S-Works Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range
The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| S1 | 150 - 160 | 4'11" - 5'3" |
| S2 | 157 - 173 | 5'2" - 5'8" |
| S3 | 165 - 180 | 5'5" - 5'11" |
| S4 | 173 - 188 | 5'8" - 6'2" |
| S5 | 178 - 193 | 5'10" - 6'4" |
| S6 | 188 - 203 | 6'2" - 6'8" |
| Frame Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Crank Length (mm) | 160 | 160 | 160 | 160 | 160 |
| Handlebar Width (mm) | 800 | 800 | 800 | 800 | 800 |
| Stem Length (mm) | 40 | 40 | 40 | 40 | 40 |
| Saddle Width (mm) | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length (mm) | 125 | 175 | 200 | 200 | 200 |
| Stack (mm) | 618 | 626 | 638 | 652 | 667 |
| Reach (mm) | 435 | 455 | 480 | 505 | 535 |
| Headtube Length (mm) | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height (mm) | 350 | 350 | 350 | 350 | 350 |
| BB Drop (mm) | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail (mm) | 132 | 132 | 132 | 132 | 132 |
| Fork Length (full) (mm) | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset (mm) | 44 | 44 | 44 | 44 | 44 |
| Front Center (mm) | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) (mm) | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height (mm) | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length (mm) | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle (mm) | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion (mm) | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion (mm) | 80 | 80 | 80 | 80 | 80 |
Specs
| Frame | All new S-Works Levo 4 frame with carbon shock extension, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm |
|---|---|
| Fork | FOX Factory Podium, GRIP X2 damper, HS and LS rebound and compression adjustment, 160mm, 20x110mm axle, 44mm offset |
| Rear Shock | FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm |
| Wheels |
Front: Traverse HD I9 Hydra 2, 29", 20x110mm axle, 28h, carbon rim, 30mm inner width Rear: Traverse HD I9 Hydra 2, 27.5", 12x148mm axle, 32h, carbon rim, 30mm inner width, XD freehub body |
| Tires |
Front: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4" Rear: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4" |
| Crankset | Cane Creek, Electric Wings printed titanium cranks, 160mm length |
| Chainrings | SRAM 34t T-Type chainring, 104 BCD, steel |
| Shifters | SRAM AXS POD Ultimate Controller with Discrete clamp |
| Rear Derailleur | SRAM XX Eagle Transmission Derailleur |
| Cassette/Freewheel | SRAM XX Eagle Transmission Cassette, 12spd, 10-52t |
| Chain | SRAM XX EagleTransmission Flattop Chain |
| Brakes | Trickstuff Maxima brake, 4 piston, 223mm rotor |
| Handlebars | Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise |
| Tape/Grips | Deity Lockjaw grips |
| Stem | Industry 9 Mountain stem, 35mm clamp, 40mm length |
| Seatpost | FOX Transfer NEO Factory, 34.9, S2: 125mm, S3: 175mm, S4-S6: 200mm |
| Saddle | Specialized Power Pro Mirror w/hollow Ti rails |
| Pedals | Sold separately |
| Accessories & Extras | SWAT internal downtube storage |
| Motor | All New Specialized 3.1 S-Works motor, 110Nm power, 720W power |
| Battery | 840wh battery |
| Controller/Display | All New Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My |
| Charger | Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80% |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Astral Blue/Dark Navy/Chrome Strata / S2 / 29-inch front/ 27.5-inch rear | 196625182044 | 96426-0002 |
| Astral Blue/Dark Navy/Chrome Strata / S3 / 29-inch front/ 27.5-inch rear | 196625182020 | 96426-0003 |
| Astral Blue/Dark Navy/Chrome Strata / S4 / 29-inch front/ 27.5-inch rear | 196625181955 | 96426-0004 |
| Astral Blue/Dark Navy/Chrome Strata / S5 / 29-inch front/ 27.5-inch rear | 196625182013 | 96426-0005 |
| Astral Blue/Dark Navy/Chrome Strata / S6 / 29-inch front/ 27.5-inch rear | 196625182037 | 96426-0006 |
